Mini DV LT

Body-Worn Video Recorder System

Special Pricing

This audio/video recorder gives all the features you need in one small lightweight unit. This state-of-

the-art video recorder will improve and support the functioning of your agency. This product can be

a great help for law enforcement agencies, DOT employees, fire departments, rescue workers,

ambulance drivers, security, military and any other profession where documentation is important.

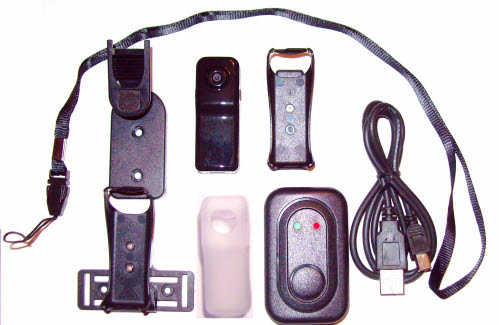

The Mini DV LT is one the world´s smallest digital video recorders. It records about 45 minutes per Gig of memory. The memory card can be upgraded up to 16 Gigs. The built-in rechargeable Lithium battery provides 2 hours of recording time between charges.

The Mini DV LT has a built in microphone and wide-view lens, so it can record what you see and hear; perfect for those times you are away from your vehicle. This recorder can help protect you from false complaints.

With a simple press of a button, the Mini DV LT begins recording. Its recordings can be viewed or downloaded on any computer by plugging the unit into a USB port with the supplied cable.

2 Mega-Pixel

Resolution of 720 x 480 at 30 fps

AVI Format

PC and Mac Compatible

Voice Activated Recording Function

2 Optional Mounts Included

Body-Worn Portability

USB Downloading

Rechargeable Lithium-ion Battery

Up to 2 Hours of Recording Time per charge

Built-in Microphone

One-Touch Recording

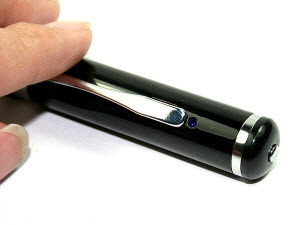

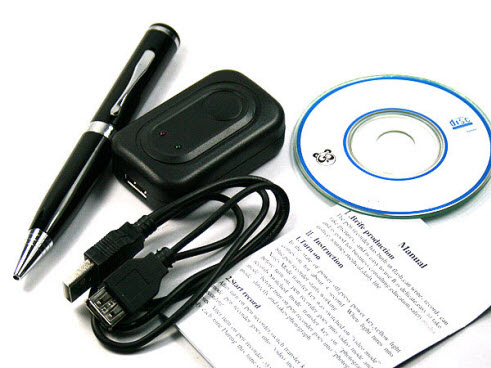

4 Gig Spy Pen Covert Recorder	Special Pricing
	Real time recording in AVI video format Color video with voice Internal rechargeable battery Internal memory: 4GB Playback video on PC Video compression : AVI video format,Resolution: 352 x 288 or 640 x 480 (High definition) Picture Resolution: 1280 x 1024 Voice recording: Yes Internal memory: Yes Flash:2 GB to 8 GB Video file size; >500KB per min. Recording mode :continuous recording until memory is full or manually off Adaptor type: USB adaptor charging cable Battery type : Lithium-ion Record time : up to 3h for 1GB Battery use time : about 90-100minuts Weight:32g Dimension:15mm(D) x 150mm(L)

Signal Video Products™ systems are specifically designed to give you the latest technology for in-car video recording safety with state of the art digital performance. Engineered for compact, easy installation, and reliability the DVR-3012 System is your best on-board digital recorder of incidents, crimes, and vandalism.

Rugged design for police applications

Three piece design for flexible mounting options into any vehicle

Pre-Event recording configurable from 0 to 5 minutes

High resolution recording: 720x480 @ 30 fps

Three levels of image quality to balance record time and clarity

MPEG2 encoding for high quality images and universal playback

System kits include all wiring harnesses and brackets for easy installation

Features:	Advantages/Benefits
Digital:	All digital, there is no tape stretching, tape breakage or replacement, weekly tape head cleanings, or tape playback inspections, and the scheduled monthly maintenance common with VCR based systems. Reliable.
“Pre-Event/Alarm” Recording:	On-board VCR systems typically record manually triggered events only due to the limited 6-8 hour total VCR tape record time. The Signal Video Products™ system can record 15-20 hours on a 30 GB removable hard drive. “Pre-Event Mode”, recording during the entire duration of the event as well as up to 5 minutes prior to the activation of a pursuit light, other event or manual trigger. This is an invaluable benefit of the Signal Video Products™ system.
Higher Resolution:	Better image quality\than VHS, the digitally recorded video will not degrade with system usage or when duplicated. Recorded video may be enlarged and further enhanced without affecting court admissibility.
Video Authentication for Court Admissibility:	Video Authentication for court admissibility is standard with the DVR-3012 system. Recorded video scenes may not be altered without detection.
Password:	A password is established for access to system set up of the recorder.
Mass Storage Solution:	Digital video may be archived electronically and stored as needed. Copied video retains full authenticity. Video may be retrieved via database search and may be copied over to video tape, CD, DVD, etc.

RECORDER
DVR-3012MR	DVR-3012MR Single camera recording with dual camera inputs for installations with front and rear cameras 4 trigger inputs including wireless audio recording activation Trigger inputs automatically start and end recordings depending on configuration Officer selection list automatically tags video files with officer name for easy searching in the database Recorder settings are easily changed using a standard PS/2 keyboard that plugs into the control head; password protected for security (no laptop or computer needed for setup) Specifically designed for automotive voltage operation, 11V - 16V range Withstands engine cranking Extended operating temp range for reliable operation in most environments, -30 to +160 degrees Fahrenheit
CAMERAS
DVR-C2 DVR-CIR	DVR-C2 268x zoom day/night camera with auto focus and white balance DVR-CIR Infer Red black and white camera for in vehicle monitoring DVR-CKIT1 Camera bracket kit
MONITOR
DVR-LCD5	DVR-LCD5 5” color LCD display for easy preview and playback viewing Menu screen displays live voltage and temperature readings as well as remaining recording capacity Text overlay on video with date, time, activated trigger and status inputs Includes customizable field for vehicle specific information
CONTROL HEAD
DVR-3012CH	DVR-3012CH Dual color backlit control head -Easy to use 8 button operation Includes universal and flange mounting brackets

SERVER
DVR-SV501 DVR-HDBAY	DVR-SV501 Fully operational server computer w/bay & operating system only DVR-SV505 Fully operational server computer w/bay & operating system only (RAID 5 main storage) DVR-SWP Video management software Easy searching and burning video files to CD or DVD Scalable backend video storage options Automatic software updates for recorder DVR-HDBAY Bay receptacle for connection of removable hard drive to server
REMOVABLE HARD DRIVE
DVR-HD30	DVR-HD30 Removable 30 GB ruggedized hard drive in a locking bay for secure and easy transfer of files to a storage server Records 15 to 20 hours of video per drive depending on the settings
WIRELESS
DVR-WBP DVR-WRX	DVR-WBP Wireless transmitter audio pack with lapel and built in microphone to ensure all conversations are recorded 32 channels 800 MHz wireless audio for interference free recordings DVR-WRX VHF wireless receiver DVR-HM Hidden microphone mounts covertly inside the vehicle
WIRELESS ACCESSORIES
	DVR-WH Optional wireless holster mounts on belt DVR-WANT Optional external mount wireless audio antenna for extended range operations
